Key features
A light, precise wind vane
A low-inertia vane with a magnetically sensitive measuring element.
- Range from 0 to 360°
- 1° resolution
- Low starting threshold
- Lightweight carbon-fibre construction
- High corrosion resistance

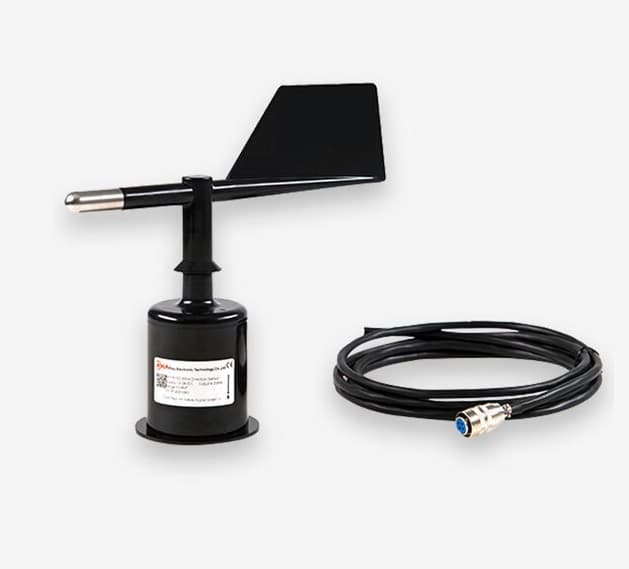

AGRO VEDA Wind Direction Sensor
A wind vane with RS485 communication for precise tracking of wind direction.
- Measuring range 0 to 360°, 1° resolution
- Accuracy ±3°, starting threshold < 0.5 m/s
- Lightweight carbon-fibre construction
- RS485 digital output, IP65 protection
Features and applications
Applications
Where it is used

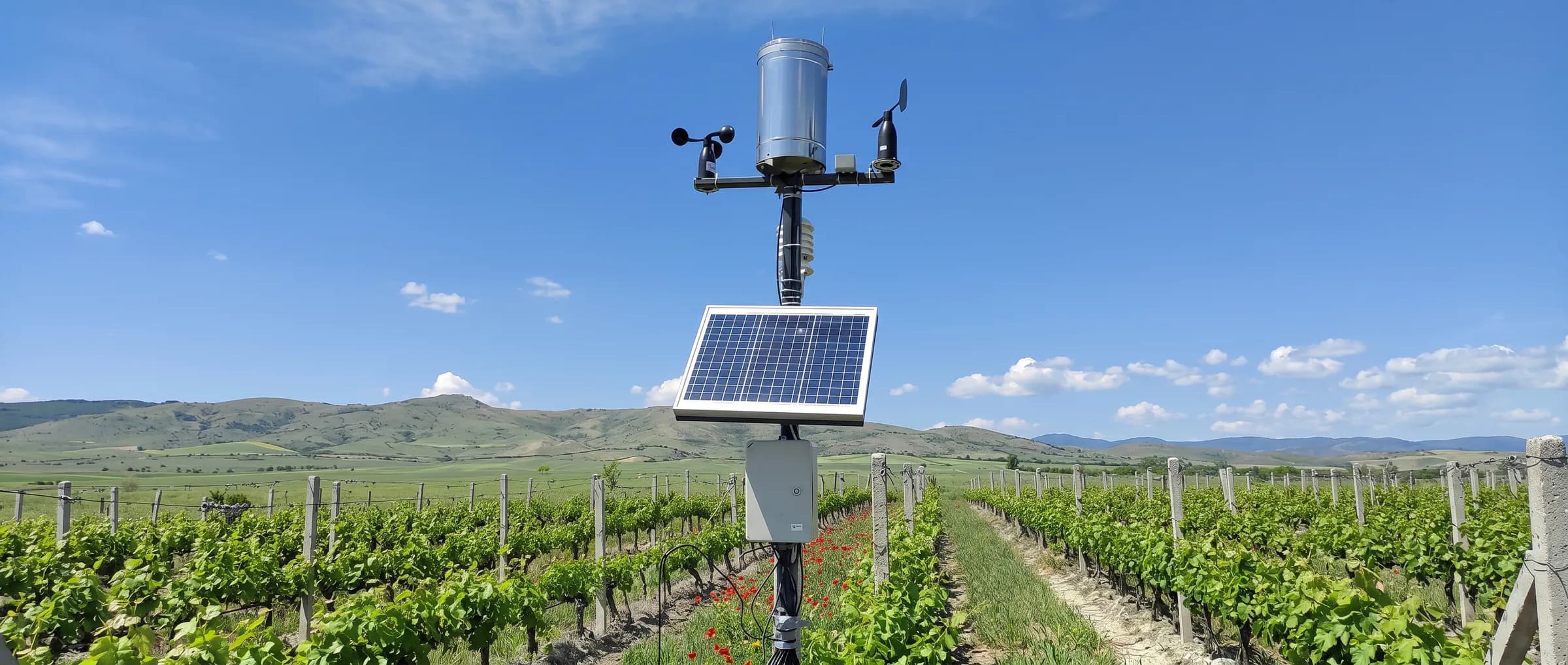

Suited to fixed and mobile stations wherever reliable wind direction is needed.
- Agrometeorological stations
- Weather monitoring
- Solar and wind energy
- Ports and airports
- Mobile monitoring stations
What this product isPrecise tracking of wind direction
The sensor measures wind direction across the full 0 to 360° range. The lightweight vane has low inertia and a low starting threshold, and the magnetically sensitive measuring element provides good linearity and stable operation in field conditions.
The technical values apply to the selected RS485 version for integration with the AGRO VEDA station.
SpecificationsSpecifications
| Measurement | |
|---|---|
| Measuring range | 0 to 360° |
| Accuracy | ±3° |
| Resolution | 1° |
| Starting threshold | < 0.5 m/s |
| Survival wind speed | 50 m/s |
| Reference direction | South = 180° |
| Communication output | RS485 |
| With the mounting mark correctly oriented, south is shown as 180°. | |
| Electrical & construction parameters | |
| Power supply | 5 VDC or 12–24 VDC |
| Communication output | RS485 |
| Operating temperature | −40 to +50 °C |
| Protection rating | IP65 |
| Main material | Carbon fibre |
| Weight (unpackaged) | 195 g |
| Turning radius | 147 mm |
| Height | 199 mm |
| Cable | Rated voltage 300 V; temperature class 80 °C |
| Storage conditions | 10 to 50 °C at 20 to 90 % RH |
| Bus termination | For lines over 100 m: 120 Ω at both ends |
InstallationMounting recommendations
- Mount the sensor on a stable support using the flange and four screws.
- The base must be horizontal so the vane can move freely.
- Point the orientation mark on the housing to the south using a compass.
- The connector diameter is Ø15 mm, and the location should be away from nearby obstacles and turbulence.
